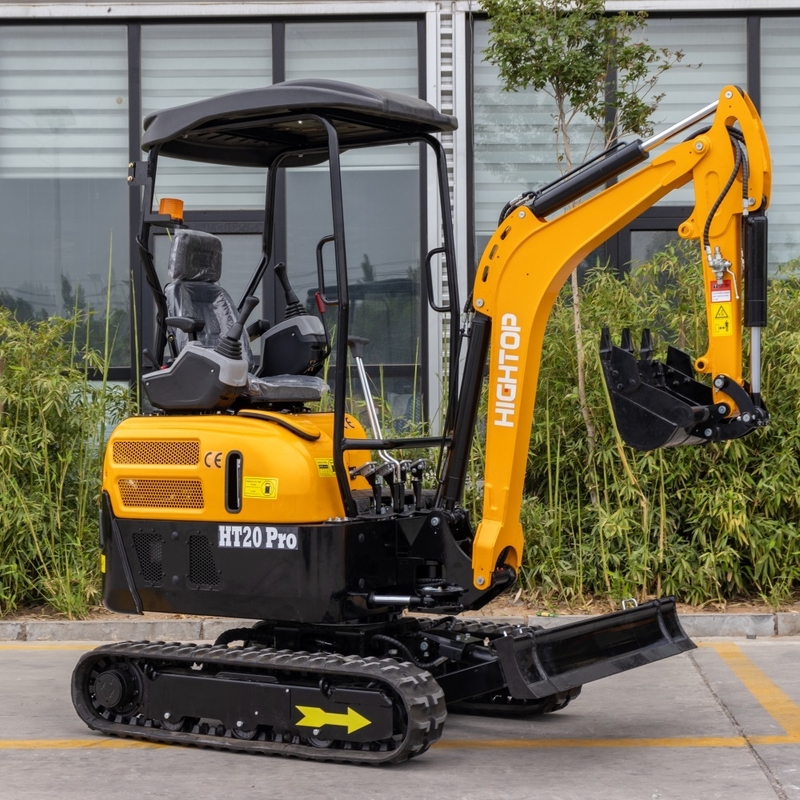

HT20Pro 2 Ton Mini Excavator with 0.025m3 Bucket 11.8kw
  • HT20Pro 2 Ton Mini Excavator with 0.025m3 Bucket 11.8kw
  • HT20Pro 2 Ton Mini Excavator with 0.025m3 Bucket 11.8kw
  • HT20Pro 2 Ton Mini Excavator with 0.025m3 Bucket 11.8kw
  • HT20Pro 2 Ton Mini Excavator with 0.025m3 Bucket 11.8kw
  • HT20Pro 2 Ton Mini Excavator with 0.025m3 Bucket 11.8kw
  • HT20Pro 2 Ton Mini Excavator with 0.025m3 Bucket 11.8kw
HT20Pro 2 Ton Mini Excavator with 0.025m3 Bucket 11.8kw

HT20Pro 2 Ton Mini Excavator with 0.025m3 Bucket 11.8kw

Luogo di origine Cina
Marca Hightop
Certificazione CE，EPA，ISO，TUV
Numero di modello HT-20Pro
Dettagli del prodotto
Nome prodotto:
Escavatore
Garanzia:
1 anno
Capacità del secchio:
0.025
Energia:
11.8kw
Evidenziare:

HT20Pro 2 ton mini excavator

,

mini excavator with 0.025m3 bucket

,

11.8kw mini excavator

Termini di trasporto & di pagamento
Quantità di ordine minimo
1
Imballaggi particolari
Cassa in legno
Tempi di consegna
5-14 giorni di lavoro
Termini di pagamento
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Capacità di alimentazione
100 set al mese
Descrizione di prodotto
HT20Pro 2 Ton Mini Excavator with 0.025m3 Bucket 11.8kw
The HT20Pro Hightop 2 Ton Excavator delivers professional-grade performance in a compact package, ideal for demanding construction and landscaping applications.
Key Features
  • Concealed Plunger Motor: Engineered for stable performance with compact structure, designed to withstand harsh working conditions and high-load continuous operation.
  • Side Swing Arm: Adjusts 45° right and 44° left without moving chassis, significantly enhancing attachment flexibility.
  • 8-Way Valve Controls: Features 2 zinc-plated actuators and 4 cast aluminum foot pedals for precise, responsive operation.
  • Premium Engine: Kubota/Laidong powerplant delivers reliable performance for diverse work requirements.
  • Enhanced Arm Design: Extended inverted arm provides superior edge work capability and increased lateral digging range.
  • Dual-Speed Operation: Low speed for complex terrain maneuvers; high speed for efficient long-distance movement.
Technical Specifications
Transportation length 2650mm
Total width 970~1270mm
Upper width 1055mm
Overall height (cab roof) 2350mm
Standard track plate width 200mm
Track gauge 770~1070mm
Shovel height above ground 290mm
Depth of excavation of bulldozer 285mm
Tail turning radius 980mm
Track ground length 1200mm
Track length 1520mm
Engine Kubota/Laidong
Maximum digging height 2875mm
Maximum unloading height 1930mm
Maximum digging depth 1995mm
Maximum digging distance 3130mm
Minimum turning radius 1670mm
Maximum height at minimum 2285mm
Working quality 1470kg
Bucket capacity 0.025m³
Working device form Backhoe
Climbing capacity 30°
Product Gallery
HT20Pro 2 Ton Mini Excavator with 0.025m3 Bucket 11.8kw 0 HT20Pro 2 Ton Mini Excavator with 0.025m3 Bucket 11.8kw 1 HT20Pro 2 Ton Mini Excavator with 0.025m3 Bucket 11.8kw 2 HT20Pro 2 Ton Mini Excavator with 0.025m3 Bucket 11.8kw 3 HT20Pro 2 Ton Mini Excavator with 0.025m3 Bucket 11.8kw 4 HT20Pro 2 Ton Mini Excavator with 0.025m3 Bucket 11.8kw 5 HT20Pro 2 Ton Mini Excavator with 0.025m3 Bucket 11.8kw 6 HT20Pro 2 Ton Mini Excavator with 0.025m3 Bucket 11.8kw 7 HT20Pro 2 Ton Mini Excavator with 0.025m3 Bucket 11.8kw 8 HT20Pro 2 Ton Mini Excavator with 0.025m3 Bucket 11.8kw 9 HT20Pro 2 Ton Mini Excavator with 0.025m3 Bucket 11.8kw 10 HT20Pro 2 Ton Mini Excavator with 0.025m3 Bucket 11.8kw 11 HT20Pro 2 Ton Mini Excavator with 0.025m3 Bucket 11.8kw 12 HT20Pro 2 Ton Mini Excavator with 0.025m3 Bucket 11.8kw 13 HT20Pro 2 Ton Mini Excavator with 0.025m3 Bucket 11.8kw 14 HT20Pro 2 Ton Mini Excavator with 0.025m3 Bucket 11.8kw 15
