HT08 800kg Mini Excavator with 12HP Engine and 0.025m³ Bucket
  • HT08 800kg Mini Excavator with 12HP Engine and 0.025m³ Bucket
  • HT08 800kg Mini Excavator with 12HP Engine and 0.025m³ Bucket
  • HT08 800kg Mini Excavator with 12HP Engine and 0.025m³ Bucket
  • HT08 800kg Mini Excavator with 12HP Engine and 0.025m³ Bucket
  • HT08 800kg Mini Excavator with 12HP Engine and 0.025m³ Bucket
  • HT08 800kg Mini Excavator with 12HP Engine and 0.025m³ Bucket
  • HT08 800kg Mini Excavator with 12HP Engine and 0.025m³ Bucket
HT08 800kg Mini Excavator with 12HP Engine and 0.025m³ Bucket

HT08 800kg Mini Excavator with 12HP Engine and 0.025m³ Bucket

Luogo di origine Cina
Marca Hightop
Certificazione CE，EPA，ISO，TUV
Numero di modello HT-08
Dettagli del prodotto
Potenza nominale:
12 CV
Capacità del secchio:
0.025 M3
Peso:
650 kg
Forza di scavatura di massimo:
7.5KN
Gradeabilità:
30 °
Evidenziare:

12HP mini excavator with bucket

,

800kg compact excavator with warranty

,

0.025m3 bucket mini digger

Termini di trasporto & di pagamento
Quantità di ordine minimo
1 set
Imballaggi particolari
Cassa in legno
Tempi di consegna
5-14 giorni di lavoro
Termini di pagamento
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Capacità di alimentazione
100 set al mese
Descrizione di prodotto

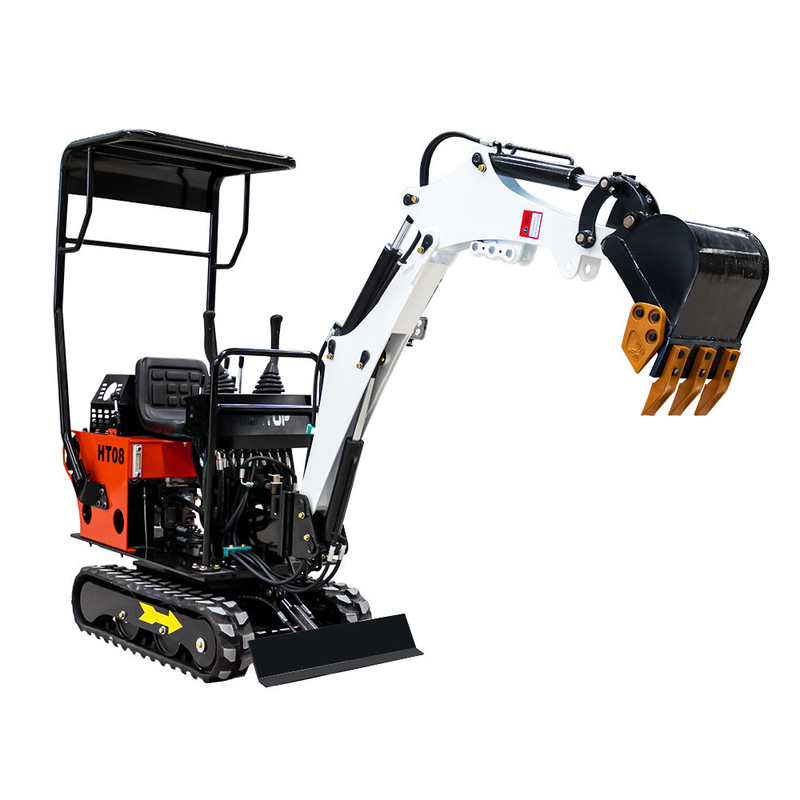

HT08 800kg Mini Excavator
Product Features
  • Hightop excavator features a unique big arm structure design for enhanced durability
  • Clear front pipeline layout with protective cover to prevent exposure and damage
  • Excavator arm cylinder uses premium brand components with integrated processing technology
  • Precision structural components processed through shot blasting, pickling, and baking for superior paint adhesion and gloss
  • 0.8 ton mini excavator equipped with pure cast iron hydraulic pump for greater wear resistance at 3600 rpm
  • High-quality imported hydraulic pipes for reliable performance
  • Rubber tracks effectively distribute machine weight, ideal for sensitive surfaces like urban roads, landscaping, and indoor work
  • Customizable appearance available in yellow, red, blue, black, and other colors
Technical Specifications
Performance Parameters
Rated power 12HP
Bucket Capacity 0.025 m³
Engine Model changchai 192
Weight 650 kg
Max. digging force 7.5KN
Pump form Single gear pump
Set working pressure 14Mpa
Swing speed 12 rpm
Travel speed 2.2Km/h
Gradeability 30°
Ground pressure 19Kpa
Working Range
Max. digging distance 2450mm
Max. digging depth 1200mm
Max. digging height 2350mm
Max. dumping height 1600mm
Min. swing radius 1100mm
Max. upgrade height of bulldozer blade 120mm
Max. digging depth of bulldozer blade 200mm
Dimensions
Total width 720-780mm
Total height 1300mm
Total length 2430mm
Min. ground clearance 80mm
Track ground length 1140mm
Track width 150mm
Product Gallery
HT08 800kg Mini Excavator with 12HP Engine and 0.025m³ Bucket 0
HT08 800kg Mini Excavator with 12HP Engine and 0.025m³ Bucket 1
HT08 800kg Mini Excavator with 12HP Engine and 0.025m³ Bucket 2
HT08 800kg Mini Excavator with 12HP Engine and 0.025m³ Bucket 3
HT08 800kg Mini Excavator with 12HP Engine and 0.025m³ Bucket 4
HT08 800kg Mini Excavator with 12HP Engine and 0.025m³ Bucket 5
HT08 800kg Mini Excavator with 12HP Engine and 0.025m³ Bucket 6
