| Luogo di origine | Cina |
| Marca | Hightop |
| Certificazione | CE，EPA，ISO，TUV |
| Numero di modello | HTS380 |

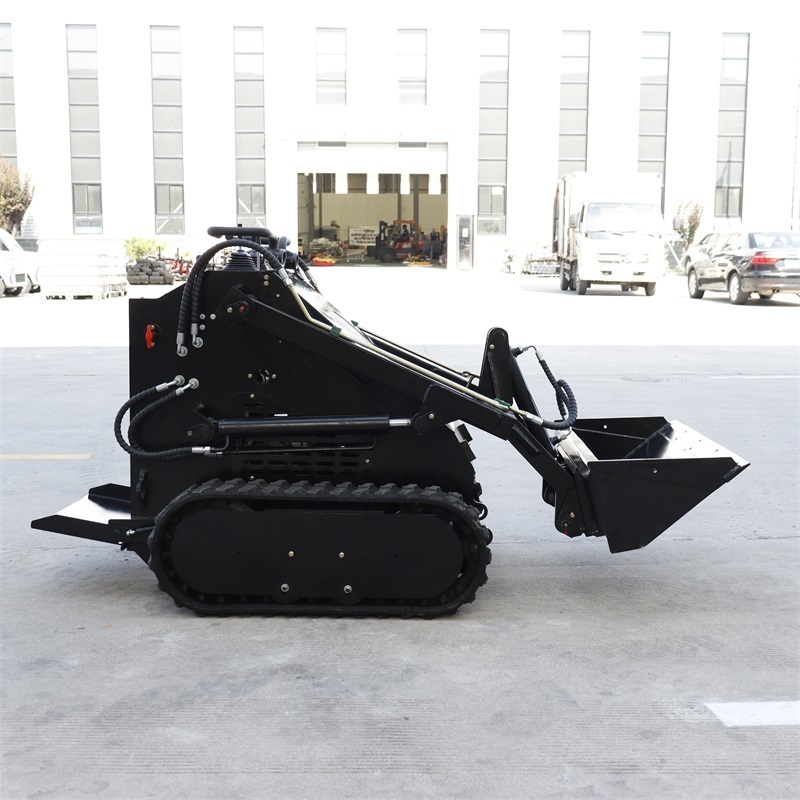

The HT380 mini skid steer features a Briggs & Stratton engine for superior load capacity. Its dual joystick control system ensures easy operation, while the multi-purpose design accommodates various attachments including de-icers, snow pushers, sweepers, and hedge trimmers.
| Specification | Measurement |
|---|---|
| Max working height | 2115 mm |
| Max pin height | 1856 mm |
| Max dump height | 1460 mm |
| Highest point discharge distance | 388 mm |
| Bucket swing angle | 55° |
| Bucket unloading angle | 30° |
| Opening-closing angle | 25° |
| Angle of departure | 8° |
| Total height | 1205 mm |
| Height from ground | 90 mm |
| Wheelbase | 636 mm |
| No bucket length | 1752 mm |
| Total width | 1033 mm |
| Bucket width | 980 mm |
| Total length (with bucket) | 2206 mm |
| Turning radius | 1307 mm |
