| Luogo di origine | Cina |
| Marca | Hightop |
| Certificazione | CE，EPA，ISO，TUV |
| Numero di modello | HT360 |

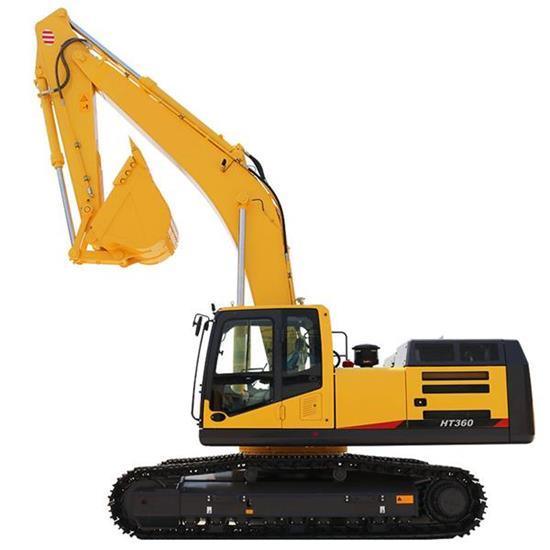

The HT360 Large Excavator is a 36-ton heavy-duty machine engineered for optimal performance in demanding work environments. With its robust construction and advanced hydraulic system, it delivers exceptional digging power and operational efficiency.
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model | HT360 | Track grounding length | 4030mm |
| Total Weight | 36t | Track length | 4945mm |
| Bucket capacity | 1.6-1.8m³ | Rail gauge | 2590mm |
| Engine model | Cummins QSC8.9 | Track width | 3190mm |
| Rated power | 242kw/2000r/min | Track shoe width | 600mm |
| Fuel tank volume | 650L | Turntable width | 2995mm |
| Walking speed | 6.2/4km/h | Distance from center of rotation to rear end | 3525mm |
| Swing speed | 8.2r/min | Track tooth thickness | 30mm |
| Dimension | Value |
|---|---|
| Total length | 11,187mm |
| Overall width | 3,190mm |
| Total height (boom top) | 3,180mm |
| Overall height (top of cab) | 3,165mm |
| Minimum ground clearance | 498mm |
| Tail turning radius | 3,525mm |
