| Luogo di origine | Cina |
| Marca | Hightop |
| Certificazione | CE，EPA，ISO，TUV |

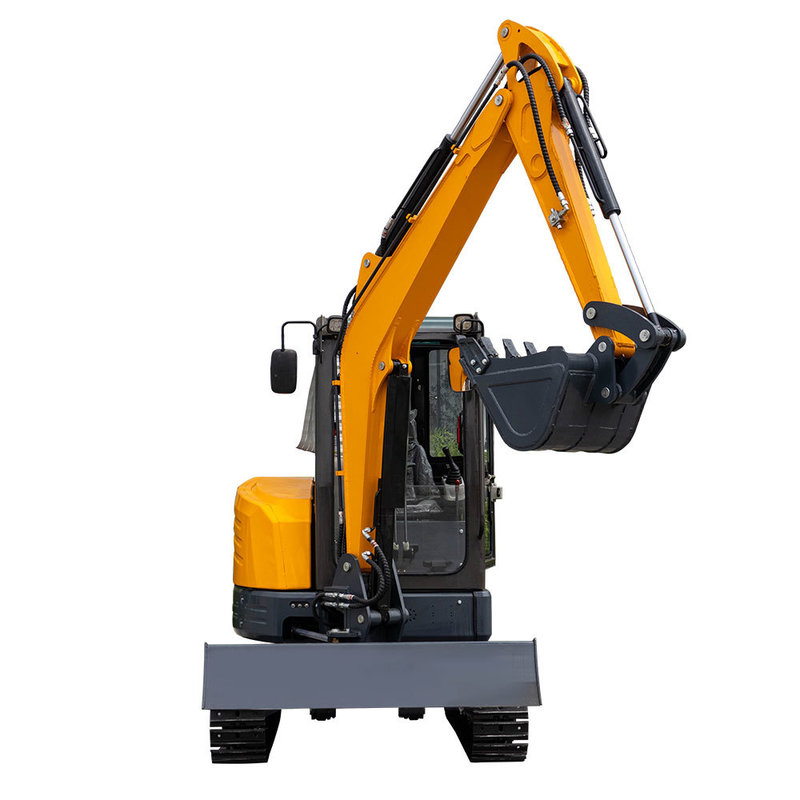

| Numero di modello | HT35 |
| Machine Dimensions | |
|---|---|
| Total length/transportation length (A) | 5029mm |
| Total width (B) | 1720mm |
| Upper width (D) | 1554mm |
| Total height (shed roof/cab roof) (C) | 2580mm |
| Standard track shoe width (F) | 300mm |
| Minimum ground clearance (H) | 319mm |
| Tail turning radius (I) | 885mm |
| Track ground length (J) | 1645mm |
| Track length (K) | 2150mm |
| Bulldozer Ground height (R) | 393mm |
| Bulldozer digging depth (T) | 461mm |
| Operating Range | |
|---|---|
| Maximum digging height (a) | 4938mm |
| Maximum unloading height (b) | 3376mm |
| Maximum digging depth (c) | 3106mm |
| Maximum digging distance (d) | 5175mm |
| Minimum radius of turn (e) | 2634mm |
| Max. Height @ Min. Rotation Radius (f) | 3716mm |
| Performance Parameters | |
|---|---|
| Operating weight | 3500kg |
| Bucket capacity | 0.12m³ |
| Rated power | 18.5KW/2200rpm |
| Turning speed | 9r/min |
| Climbing ability | 58% |
| Bucket digging force | 30.4KN |
| Bucket rod digging force | 18.2KN |
| Main Components | |
|---|---|
| Engine | Kubota D1703 |
| Valve pressure | 24MP |
| Flow sharing main valve | HVSE-09-09-P270-BE212 |
| Pump displacement | 40cc |
| Swash plate axial plunger variable pump | HP5V45/AV10RB2S2MGA-L1/1-HT1 |
| Travel speed | 4.2/2.4km/h |
| Travel motor | Variable plunger motor |
| Engine oil capacity | 5.1L |
| Fuel tank capacity | 50L |
| Valve system flow | 79.2L/min |
| Cooling system capacity | 5.05L |
| Pump Max.speed | 3250r/min |
| Hydraulic oil tank capacity | 55L |
