HT10G Mini Excavator with 1000kg Weight
  • HT10G Mini Excavator with 1000kg Weight
  • HT10G Mini Excavator with 1000kg Weight
  • HT10G Mini Excavator with 1000kg Weight
  • HT10G Mini Excavator with 1000kg Weight
  • HT10G Mini Excavator with 1000kg Weight
  • HT10G Mini Excavator with 1000kg Weight

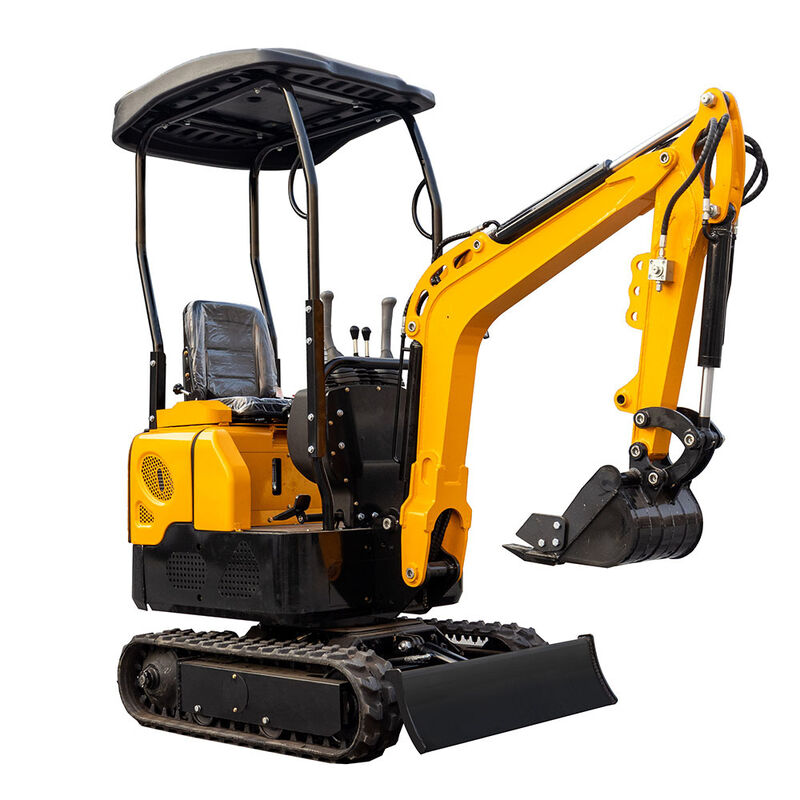

HT10G Mini Excavator with 1000kg Weight

HT10G Mini Excavator with 1000kg Weight

Luogo di origine Cina
Marca Hightop
Certificazione CE，EPA，ISO，TUV
Numero di modello HT10G
Dettagli del prodotto
Modello:
HT10G
Peso:
1000 kg
Capacità della tazza scavatrice:
0.025cbm/120kg
Autorizzazione minima del suolo:
100mm
Evidenziare:

1000kg Weight Mini Excavator

,

0.025cbm Bucket Capacity Compact Excavator

,

100mm Ground Clearance Mini Digger

Termini di trasporto & di pagamento
Imballaggi particolari
Custodia in legno
Tempi di consegna
5-14 giorni di lavoro
Termini di pagamento
L/C,D/A,D/P,T/T,Western Union
Capacità di alimentazione
100 set al mese
Descrizione di prodotto
HT10G Mini Excavator
Premium Components & Quality Assurance
  • High-quality components from developed countries: Japan main hydraulic pump, Italy main valve, Italy swing motor and traveling motor
  • Domestic KOOP 192 engine for strong power and stable operation, with optional Koop Engine for European emission standards or US BRIGGS & STRATTON Engine for USA emission compliance
  • Hydraulic pipes imported from Continental AG Germany Company for superior leak resistance
  • 100 kg counterweight for enhanced stability and power during operation
  • Structural parts processed by Japan Komatsu supporting manufacturers with complete surface treatment including shot blasting, pickling, phosphating, and spraying for superior paint adhesion and durability
  • Pressure reducing valve device for easier machine startup
Advanced Optional Features
  • Adjustable dozer blade length (84cm-105cm) with working height adjustment from -15cm to 15cm
  • Extendable crawler system from 830mm to 1000mm for navigating narrow spaces
  • 60-degree boom deflection capability for enhanced operational flexibility
Technical Specifications
Weight 1000kg Standard track plate width E 180mm
Digging bucket capacity 0.025cbm/120kg Track gauge F 750mm
Rotation speed 12RMP Wheelbase H 884mm
Climbing capacity 30° Track ground length I 962mm
Engine KOOP 192 (Optional: BRIGGS & STRATTON) Track length J 1204mm
Main Valve Beifang Minimum ground clearance K 100mm
Rated power 10.2KW/2500RPM Tail swing radius L 810mm
Overall length / transport length A/M 4000/2380mm Max. Digging height 2455mm
Overall width B 940mm Max. Dumping height 1605mm
Overall height (cab roof) C 2268mm Max. Digging depth 1855mm
Total track width D 930mm Max. Digging radius on ground 3050mm
Max. digging radius 3130mm
Product Gallery
HT10G Mini Excavator with 1000kg Weight 0 HT10G Mini Excavator with 1000kg Weight 1 HT10G Mini Excavator with 1000kg Weight 2 HT10G Mini Excavator with 1000kg Weight 3 HT10G Mini Excavator with 1000kg Weight 4 HT10G Mini Excavator with 1000kg Weight 5 HT10G Mini Excavator with 1000kg Weight 6 HT10G Mini Excavator with 1000kg Weight 7
