HT25J 2.5-ton CE Certified Mini Excavator
  • HT25J 2.5-ton CE Certified Mini Excavator
  • HT25J 2.5-ton CE Certified Mini Excavator
  • HT25J 2.5-ton CE Certified Mini Excavator
  • HT25J 2.5-ton CE Certified Mini Excavator
  • HT25J 2.5-ton CE Certified Mini Excavator
  • HT25J 2.5-ton CE Certified Mini Excavator
HT25J 2.5-ton CE Certified Mini Excavator

HT25J 2.5-ton CE Certified Mini Excavator

Luogo di origine Cina
Marca Hightop
Certificazione CE，EPA，ISO，TUV
Numero di modello HT25J
Dettagli del prodotto
Lunghezza totale/Lunghezza di spedizione A:
2895
Larghezza totale B:
1400
Larghezza superiore D:
1310
Altezza totale (parte superiore della cabina) C:
2450
Termini di trasporto & di pagamento
Quantità di ordine minimo
1 set
Imballaggi particolari
Confezione in scatola di legno
Tempi di consegna
5-14 giorni lavorativi
Termini di pagamento
L/C,D/A,D/P,T/T,Western Union
Capacità di alimentazione
100 set al mese
Descrizione di prodotto

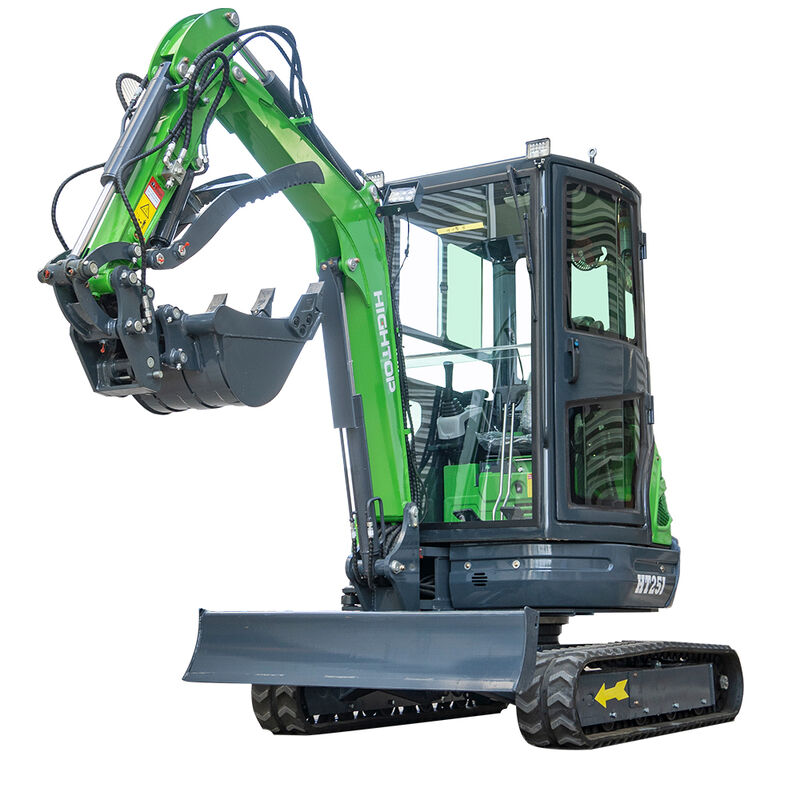

HT25J Small Excavator
The HT25J is Shandong Hightop's flagship 2.5-tonne class tracked mini excavator designed for export. With its compact design, agile handling and reliable power, it is suitable for a wide range of applications, including confined spaces, agricultural and landscaping work, municipal projects and indoor construction. The machine has obtained international certifications such as CE, ISO, EPA and Euro 5, and its quality meets both domestic and international construction standards, making it a workhorse model for small-scale and micro-scale engineering projects.
Overall Dimensions (mm)
Measurement Value
Overall length/Shipping length A 2895
Total width B 1400
Upper width D 1310
Overall height (top of cab) C 2450
Standard track pad width F 230
Track gauge G 1170
Turning radius at the rear I 709
Track contact length J 1495
Track length K 1830
Height of the dozer blade above the ground R 255
Bucket digging depth T 250
Technical Specifications
Specification Value
Work quality (KG) 1850
Bucket capacity (m³) 0.04
Rated power 18.9kw/2200rpm
Rotational speed 10r/min
Hill-climbing ability 30 degrees
Working Range (mm)
Measurement Value
Maximum digging height a 3572
Maximum unloading height b 2276
Maximum digging depth c 2245
Maximum excavation distance d 3705
Minimum turning radius e 1975
Maximum height f at the minimum turning radius 2722
Product Images
HT25J 2.5-ton CE Certified Mini Excavator 0 HT25J 2.5-ton CE Certified Mini Excavator 1 HT25J 2.5-ton CE Certified Mini Excavator 2 HT25J 2.5-ton CE Certified Mini Excavator 3 HT25J 2.5-ton CE Certified Mini Excavator 4 HT25J 2.5-ton CE Certified Mini Excavator 5 HT25J 2.5-ton CE Certified Mini Excavator 6 HT25J 2.5-ton CE Certified Mini Excavator 7 HT25J 2.5-ton CE Certified Mini Excavator 8 HT25J 2.5-ton CE Certified Mini Excavator 9 HT25J 2.5-ton CE Certified Mini Excavator 10 HT25J 2.5-ton CE Certified Mini Excavator 11 HT25J 2.5-ton CE Certified Mini Excavator 12 HT25J 2.5-ton CE Certified Mini Excavator 13 HT25J 2.5-ton CE Certified Mini Excavator 14 HT25J 2.5-ton CE Certified Mini Excavator 15 HT25J 2.5-ton CE Certified Mini Excavator 16 HT25J 2.5-ton CE Certified Mini Excavator 17
